Hengstar Brand
Hengstar Brand
Type
Capacitive/Resistive
Screen Size
6.5” / 15” / 17” / 19”
Response Time
5 ms
Resolution
1280*1024
Interface Type
VGA, DVI
Support
Customized Port
Certificates
ROHS, FCC, CE,KC
Application
Marine, Food Industry, Vehicle Control And Industrial Automations, etc.
Supply Ability
10000 Piece/Pieces per Month
Payment
L/C、D/A、D/P、T/T、Western Union、MoneyGram、Paypal
Product Comparison
Compared with products in the industry, 's has the outstanding advantages which are mainly reflected in the following aspects.
  • v s
Product Advantage
  • 's details are presented to you in the following section.
  • Compared with products in the same category, has the following advantages.
  • series manufactured by include multiple types. And the products shown below belong to this type.
  • Shenzhen Hengstar Technology Co., Ltd., located in , is a enterprise. The main business is to produce .
  • When we say that lead the industry, we can back that up with patents and performance. The touch displays vary by size. .
  • After years of laborious efforts, is now certified by the following qualifications.
  • produced by is applied to the following industries.
  • introduces and cultivates talents to form an excellent team. They make a great contribution to the construction of a complete management system.
Company Advantages
1. We have reasonably priced without finding grounds for quality. Hengstar's LCD products have been certified under ROHS, FCC, CE and KC
2. Amidst our wide range of , we are also engaged in offering a wide range of . Hengstar's SDI monitor is aimed at the broadcast monitoring field
3. Shenzhen Hengstar Technology Co., Ltd. has all latest equipment and tools which aid in performing their research in a better and desired way. High quality materials are used in the manufacture of Hengstar's touch display
4. The electronic and materials in the touch display are up to industrial and military grades, Hengstar Is Specialized In Development, Production And Quality Control.
5. The touch displays are multisystem operational. Hengstar is strong in technology, advanced equipment and quality assurance system.
6. The industrial LCD monitors are suitable for different industrial control and factory automation. being engaged in offering high-end ,, Hengstar enjoys a high reputation among customers.

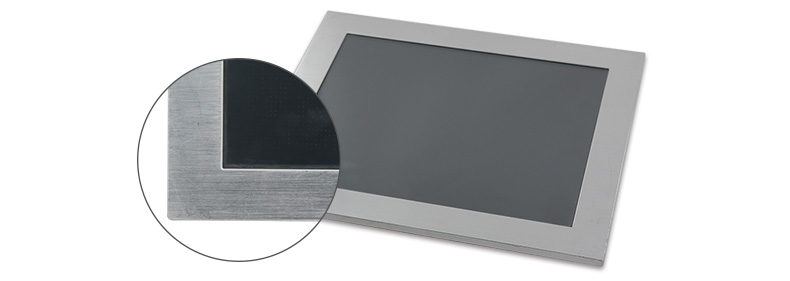

Panel

Magnesium alloy die-casting a forming, coating industry calx high-temperature baking paint processing, panel reaches IP65 protection class

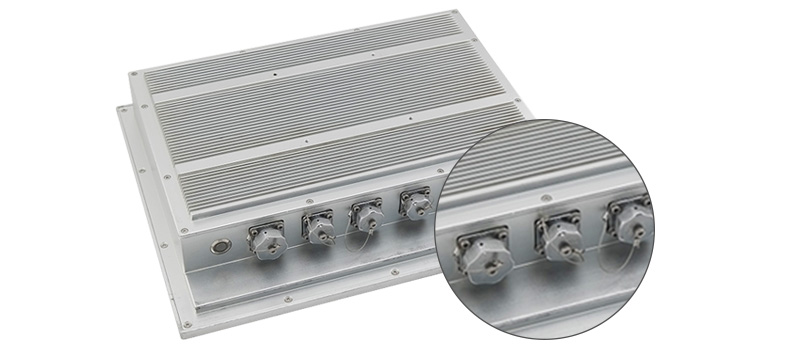

Box

Full aluminium coating industrial metal gray high temperature of the lacquer that bake, beautiful and lightweight, good heat dissipation performance, ventilation, in order to achieve good dustproof and waterproof effect.

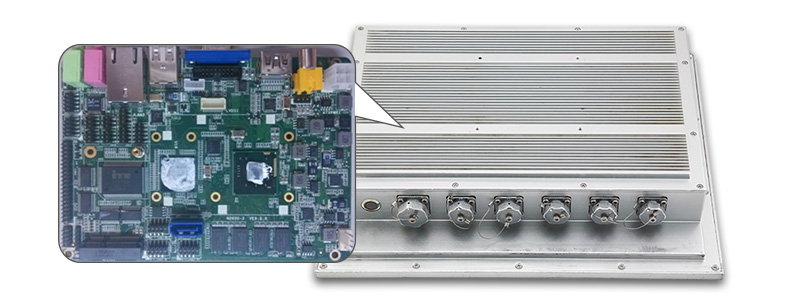

High performance industrial grade driver board

Intel Cedar View + NM10 Two-Chip Solution

Integration of Intel Intel®Atom™ N2600,1.66GHz, dual core processor

2G to 4 GB DDR3 1066/800 SDRAM, 1 SO-DIMM

Onboard, PCI-E Gigabit Ethernet LAN

6 COM, 6 USB, 2 SATA, 2 Mini PCI-E, 3.5 Inch


Product Specification


Product Name

Fully IP65 Grade Monitor

LCD panel
     (Mitsubishi AA065VE01)

Size/Aspect ratio

6.5” / 15” / 17” / 19”

Pixel numbers (H*V)

640*480      (6.5”)
     1024*768    (15”)
     1280*1024  (17” / 19”)

Brightness (cd/m2)

700  (6.5”)
     400  (15” / 17”)
     350  (19”)

Controller board
     (HSTW-6563)

Signal

6.5”

VGA

15” / 17”

D-Sub15 pin*1, DVI

19”

D-Sub15 pin*1

OSD Control

Menu/Select, Auto, Up, Down, Power

Power plug

12 VDC jack  (15” / 17” / 19”)

Operating condition

Temperature

6.5”

-30°C to 80°C (Operating)
     -30°C  to 80°C (Storage )

15” / 17” / 19”

0°C to 50°C (Operating)
     -20°C  to 60°C (Storage )

Humidity

6.5”

5% RH to 90% RH (Operating)
     5% RH to 95% RH (Storage)

15” / 17” / 19”

10% RH to 90% RH (Operating)
     10% RH to 90% RH (Storage)

Power

Input Voltage

6.5”

9-36V DC

15” / 17”

12V DC,(AC adapter,100~240VAC,50/60Hz)

19”

100~240V AC,50/60Hz

Operation

10 W  (6.5”)
     30 W  (15” / 17”)
     48 W  (19”)

Mount/installation

VESA mount:75*75mm


Company Features
1. Shenzhen Hengstar Technology Co., Ltd. is a leading company in field in terms of market value. - in Shenzhen Hengstar Technology Co., Ltd. is highly prestigious among industry people.
2. Shenzhen Hengstar Technology Co., Ltd. pays high attention to the introduction of high-level production equipment to guarantee quality of . - Shenzhen Hengstar Technology Co., Ltd.'s product R&D team consists of a group of experienced senior engineers and outstanding technicians.
3. Shenzhen Hengstar Technology Co., Ltd. never neglects the importance of . Contact! - Customers' satisfactions is the best momentum for Shenzhen Hengstar Technology Co., Ltd.. Contact!
